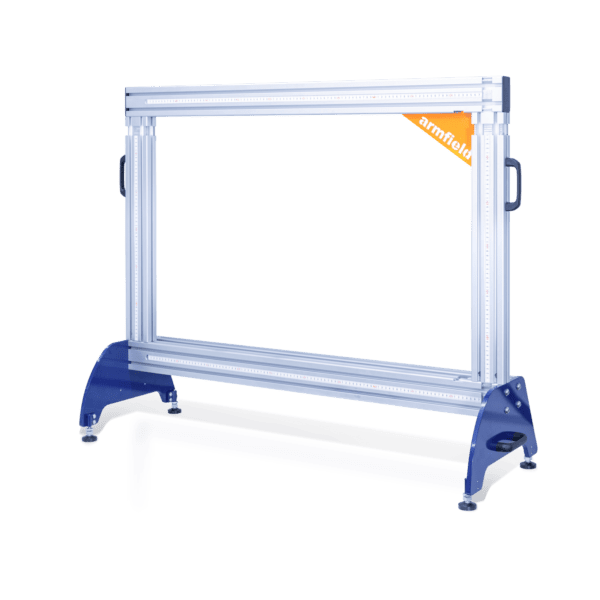

SV100 – Bench Mounted Frame



SV100 – Bench Mounted Frame

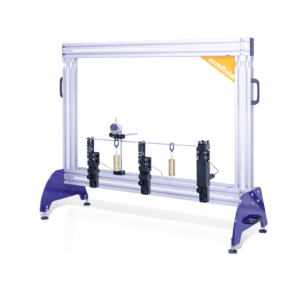

A lightweight aluminium bench mounted frame that enables quick and easy attachment of the interchangeable experiment modules from the Armfield SV Structures range.

The frame is supplied with a fixing system that has been designed to be quick and easy to use. It allows students to change, position and secure each experiment.

Adjustable feet support the frame to allow students to level the apparatus before use.

Description

A lightweight aluminium bench mounted frame that enables quick and easy attachment of the interchangeable experiment modules from the Armfield SV Structures range.

Technical Specifications

Internal Working Area:
Height: 600mm
Width: 950mm

Assembled Dimensions:
Height: 920mm

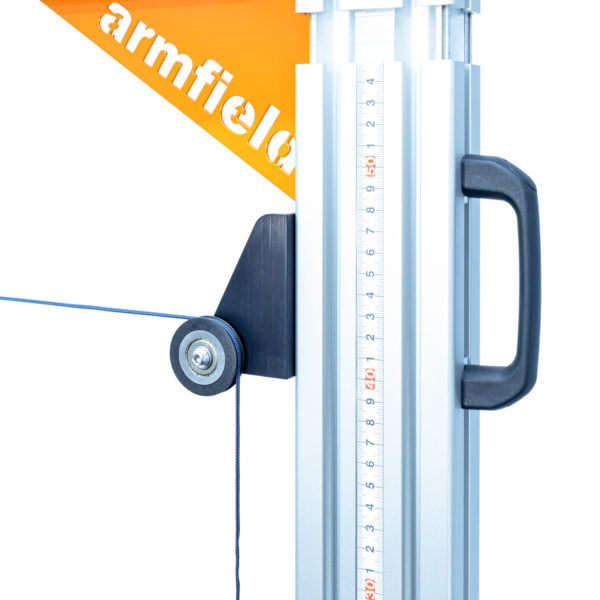

Width: 1110mm (Frame only) 1176mm with carry handles
Frame dimensions: 80mm x 40mm
Frame Construction: Aluminium

Features & Benefits

  • Strong, lightweight, bench mounted frame
  • Supporting frame for all of the Armfield SV structures range of experiments
  • Provides multiple mounting positions for experiments

Downloads

  • Storage temperature: -10°C to +70°C
  • Operating temperature range: +10°C to +50°C
  • Operating relative humidity range: 0 to 95%, non condensing

Forces in a Truss

  • SV200: Pin-Jointed Frameworks (Roof and Warren Truss)

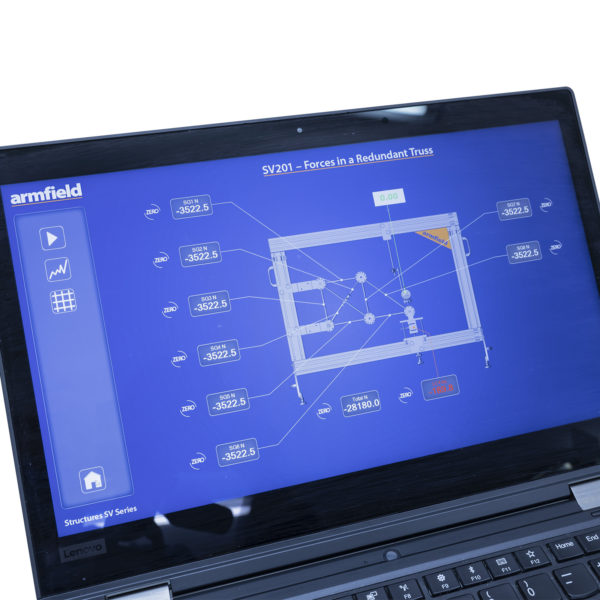

  • SV201: Forces in a Truss (Resolution) Redundant truss
  • SV202: Deflection of Trusses

Forces & Moments

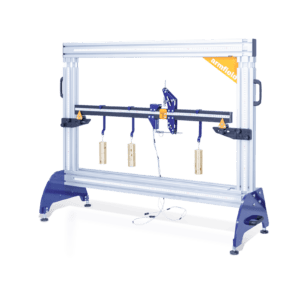

  • SV300: Combined Shear Force & Bending Moment Apparatus
  • SV301: Shear Force in a Beam
  • SV302: Bending Moments in a Beam
  • SV303: Deflection of Beams and Cantilevers
  • SV304: Equilibrium of Forces
  • SV305: Suspension Cable
  • SV306: Bending Stress in a Beam

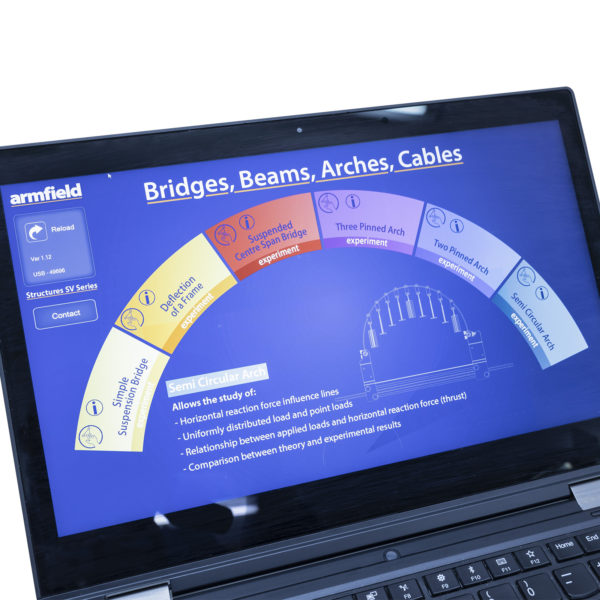

Bridges, Beams, Arches, Cables

  • SV400: Simple Suspension Bridge
  • SV401: Deflection of a Frame

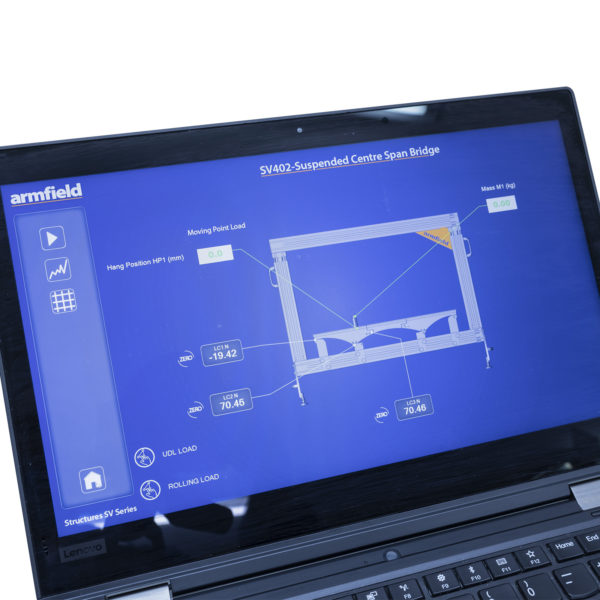

  • SV402: Suspended Centre Span bridge
  • SV403: Three-Pinned Arch
  • SV404: Two-Pinned Arch
  • SV405: Semi-Circular Arch

Strength of Materials

  • SV500: Continuous and Indeterminate Beams
  • SV501: Plastic Bending of Beams
  • SV502: Plastic Bending of Portals
  • SV503: Deflection of Curved Bars

PACKED AND CRATED SHIPPING SPECIFICATIONS

Volume: 0.36
Gross Weight: 20kg

Length: 1.176m
Width: 0.392m
Height: 0.922m

SV100: Bench Mounted Frame
