SV300 – Combined Shear Force and Bending Moment Apparatus



SV300 – Combined Shear Force and Bending Moment Apparatus

The experiment Combined Shear Force & Bending Moment in a Beam allows the experimental investigation of the internal shear force and bending moment of a simply supported beam under different point loads.

This experiment has the following properties:

  • Split beam allows the internal shear force and bending moment at the split to be measured
  • Up to 3kg of point loads can be applied to the beam across three movable weight hangers
  • Adjustable simple supports

Description

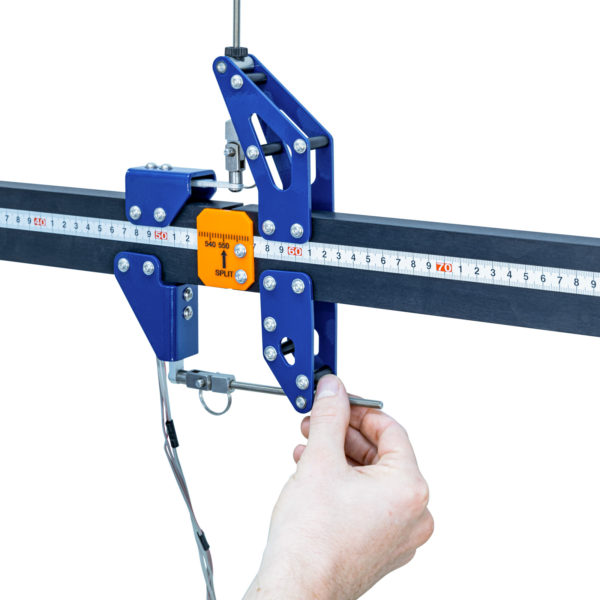

The beam used in this experiment has been split into two sections and then re-joined to allow the shear force and bending moment to be measured at the point the beam has been split. The connection of the two sections of beam allow it to be adjusted so that the sections are parallel and level, using the supplied level, while allowing the beam to be deflect under load.

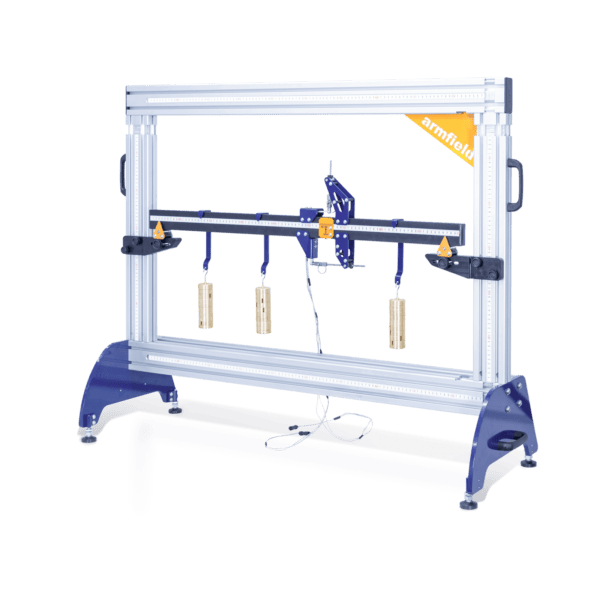

The split beam rests on two simple supports, one at each end. Each beam section rests on a roller that is free to rotate allowing the beam to move as it deflects. The simple supports are fixed laterally through slots in two universal frame mounts allowing the position of the simple support to be adjusted.

The side plate of each support can be used as a pointer against the tape measure fixed to each beam section, allowing the position of the supports relative to the split to be recorded.

Point loads are applied to the beam through three extended weight hangers and three 1000g slotted weight hangers. The extended weight hangers can be moved along the length of the beam allowing many different loading conditions to be explored.

Like the simple supports, the extended weight hangers have a pointer that may be used against the tape measure fixed to each beam section, allowing the position of the supports relative to the split to be recorded.

Technical Specifications

  • Long Split Beam: 550mm
  • Short Split Beam: 350mm
  • Beam Total Length: 900mm
  • “Bending Moment Force Offset: 87.9 mm”
  • Measurement Type at Beam Split: Shear Force & Bending Moment
  • Instrument Level Sensitivity: 60 seconds per 2mm division
  • 2 x Universal Frame Mounts
  • 2 x Sliding Simple Supports
  • 3 x 1000 g Weight Hangers
  • 3 x Extended Weight Hangers 24g
  • 1 x Instrument Level
  • 1 x 300 mm Steel Rule
  • 2 x Detent Pins
  • Split Beam Connecting Hardware
  • Universal Frame Mounting Hardware

Features & Benefits

  • Allows experimentation of both Bending and Shear in the same experiment
  • Split beam allows the internal shear force and bending moment at the split to be measured
  • Up to 3kg of point loads can be applied to the beam across three movable weight hangers
  • Adjustable simple supports
  • Unrestricted load position
  • Visually realistic ‘cut’ beam
  • Supplied with both a short and long split beam

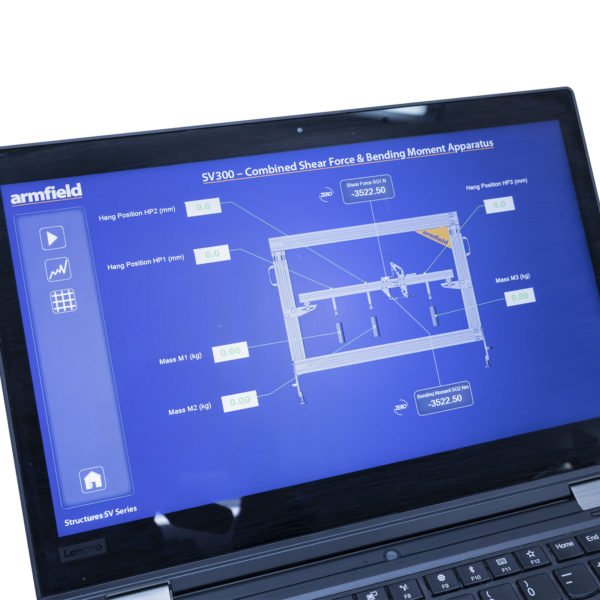

  • Supplied with Armfield structures software as standard
  • supplied with comprehensive manual and experimentation

Downloads

  • Determine the internal shear force and bending moment within a simply supported beam with multiple point loads to be measured and compared to those obtained through hand calculations
  • Variation in bending moment for variation in load, load position and load arrangement
  • Comparison of experimental with theoretical values of shear force and bending moment
  • Influence lines

  • Shear force
  • Bending moment
  • Strain
  • Stress
  • Young’s modulus
  • Shear force diagram
  • Bending moment diagrams
  • Verification of equilibrium of vertical forces and moments

  • Storage temperature: -10°C to +70°C
  • Operating temperature range: +10°C to +50°C
  • Operating relative humidity range: 0 to 95%, non condensing

SV100: Bench Mounted Frame

SV101: Structures Interface Unit

PC with a USB port, running Windows 7 or above

Electrical supply:

110/120V, 60Hz
220/240V, 50Hz

  • SV100: Bench Mounted Frame
  • SV101: Structures Interface Unit

PACKED AND CRATED SHIPPING SPECIFICATIONS

Volume: 0.1m³
Gross Weight: 25kg

Length: 1.176m

Width: 0.392m

Height: 0.922m

  • SV300: Combined Shear Force & bending Moment Apparatus
  • SV100: Bench Mounted Frame (Sold separately)
  • SV101: Structures Interface Unit (Sold separately)
