    SD-1.50 – Wheel and Axle



    SD-1.50 – Wheel and Axle

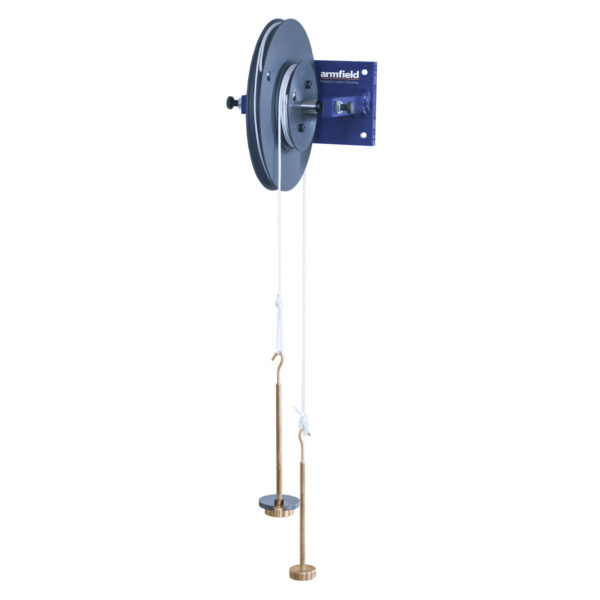

    The dual diameter wheel has an axle supported on simple pivots in a sturdy wall mounting bracket. Each wheel has a cord wrapped around its periphery.

    Add to quote
    Product Code: SD-1.50 Categories: , , , Tags: , , , , , , , , ,
    Print

    1. Share

    2.
    3.
    4.

    Description

    The dual diameter wheel has an axle supported on simple pivots in a sturdy wall mounting bracket. Each wheel has a cord wrapped around its periphery. The cords can be wrapped in either direction around each wheel. A load hanger is added to each cord allowing loading of the wheels using the calibrated weights set provided.

    Technical Specifications

    • Large wheel diameter: Ø150mm
    • Small wheel diameter: Ø75mm
    • Maximum recommended load: 200N
    • Weights set: 1 x 0.1N, 2 x 0.2N, 1 x 0.5N, 1 x 1N, 2 x 2N, 2 x 5N, 2 x 10N, 2 x 20N

    Features & Benefits

    • Wall mounted apparatus
    • Can be mounted to SV100 Bench Mounted Frame
    • Introduction to mechanics of wheel and axle
    • Effort and Efficiency investigated
    • One assembly; two wheels; two diameters
    • Full set of weights and hangers supplied

    Downloads

    SD-1.50 - Wheel and Axle PDF Datasheet DownloadDownload Attached File

    • Experimental determination of velocity ratio and comparison with calculated value
    • Determination of variation with load of effort
    • Determination of variation with load of efficiency

    • 1 x SD-1.50 assembled
    • 1 x Load hanger
    • 1 x 0.1N, 2 x 0.2N, 1 x 0.5N, 1 x 1N weights
    • 2 x 2N, 2 x 5N, 2 x 10N, 2 x 20N weights
    • 1 x Tape measure
    • Spare cord
    • Instruction manual
    • Test sheet
