FM64 – Pump Test Accessory
The FM64 consists of a return tube incorporating a gate valve which can be attached to the pump outlet on the FM6X service unit.
The unit incorporates a pressure sensor to measure the inlet condition of the water.
This product is already in your quote!
Browse quotes
Description
The FM64 consists of a return tube incorporating a gate valve which can be attached to the pump outlet on the FM6X service unit.
The unit incorporates a pressure sensor to measure the inlet condition of the water.
Technical Specifications
Maximum flow: 50 l/min
Maximum head: 55m
Pipe Diameter: 1 inch
Pressure Sensor: 0 to 100psi
Features & Benefits
- Determination of characteristic performance curves for a peripheral pump, including:
– constant speed
– head/flow
– efficiency curves
- Compact accessory to enable investigation of pump performance
- Mounts on a dedicated service unit

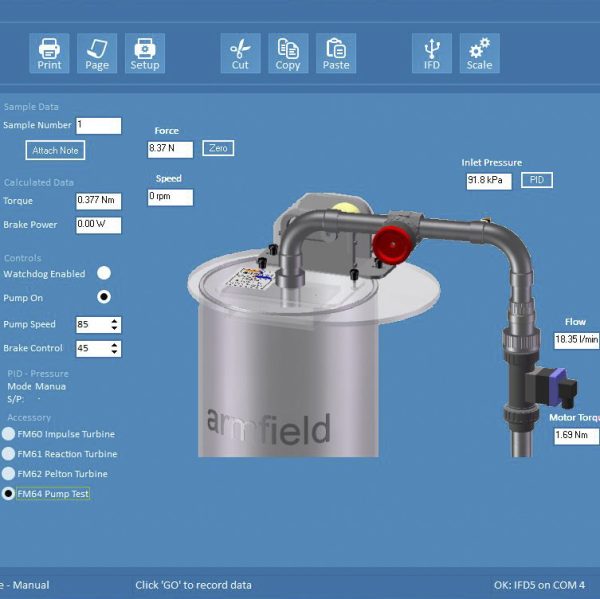

- Links to a PC via the service unit and a USB interface console
- FM6X
- Armfield IFD7
- Software requires a computer running Windows XP or above with a USB port (computer not supplied by Armfield)
PACKED AND CRATED SHIPPING SPECIFICATIONS
Volume: 0.10m³
Gross Weight: 10Kg
Length: 0.50m
Width: 0.14m
Height: 0.23m
- FM64
- FM6X
- IFD7-A: 220-240V / 1Ph / 50Hz
- IFD7-G: 220-240V / 1Ph / 60Hz
