    SD-1.53 – Gear Tooth Form Apparatus



    SD-1.53 – Gear Tooth Form Apparatus

    Experimental determination of shape and construction of an involute curve

    Add to quote
    Product Code: SD-1.53 Categories: , , , Tags: , , , , , , , , ,
    Print

    1. Share

    2.
    3.
    4.

    Description

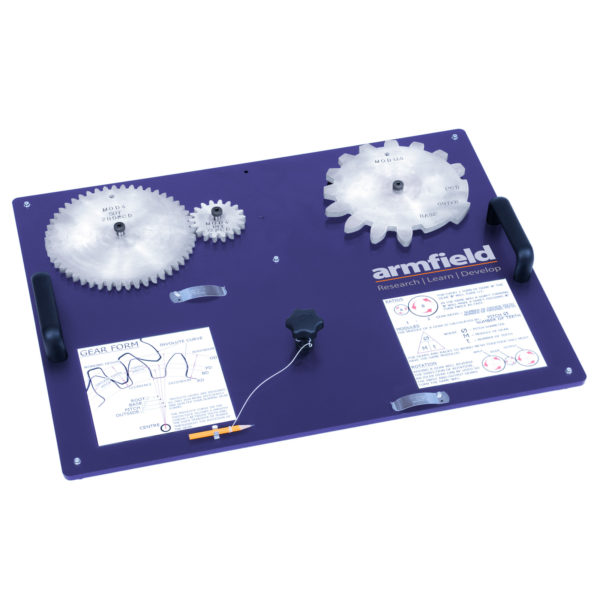

    A bench top base plate contains all elements for this experiment.

    Three gears are located onto the base plate. A large gear and small gear mesh together and can be rotated to produce analysis of ratios. A third gear is removable to allow students to review its tooth form, pitch circle diameter (PCD) and other key geometry of a tooth form.

    The apparatus also explains the form of an involute curve and how this is used to create a gear tooth profile. To help describe what an involute curve is, paper can be placed into the apparatus and an involute curve drawn. A set of vernier callipers is provided to allow the removable gear to be measured to help give a practical analysis of the gear form. Labels are used on the unit to help clearly explain gear theory.

    Technical Specifications

    • Large (Mod 4) gears
    • Large gear: 50 tooth, Module 4, 200mm PCD
    • Small gear: 18 tooth, Module 4, 72mm PCD
    • Removable gear module 12.5

    Features & Benefits

    • Bench or wall mounted apparatus
    • Two connecting gears supplied
    • One gear for measuring
    • Drawing of Involute Gear form
    • Theory and terminology clearly labelled on unit

    Downloads

    SD-1.53 - Gear Tooth Form Apparatus PDF datasheet downloadDownload Attached File

    • Experimental determination of shape and construction of an involute curve
    • Explanation of Gear Form
    • Explanation of Gear Ratios
    • Explanation of Gear Modules
    • Explanation of Gear Trains and Rotational Direction

    • 1 x SD-1.53 assembly
    • 1 x Digital vernier
    • Spare cord
    • 5 x Pencil
    • Instruction manual
    • Packing list
    • Test sheet

    Theory of Machines

    • SD-1.50                 Wheel and Axle
    • SD-1.51                 Wheel and Differential Axle Apparatus
    • SD-1.52                 Efficiency of Screw Threads
    • SD-1.53                 Gear Tooth Form Apparatus
    • SD-1.54                 Cam and Follower Apparatus
    • SD-1.55                 Simple Flywheel
    • SD-1.56                 Epicyclic Gear Train
    • SD-1.57                 Castor, Camber, and King Pin Inclination
    • SD-1.58                 Relation Between Angular and Linear Speeds
    • SD-1.59                 Disc Brake Apparatus
    • SD-1.60                 Static & Dynamic Balancing Apparatus
    • SD-1.61                 Governor Apparatus
    • SD-1.62                 Gear Assembly Unit Combined Drives
    • SD-1.63                 Single Epicyclic Gear Train

    Sturdy bench top

    PACKED AND CRATED SHIPPING SPECIFICATIONS

    Volume: 0.03m³
    Gross Weight: 13kg

    Length: 0.60m
    Width: 0.53m
    Height: 0.08m

    SD-1.53 Gear Tooth Form Apparatus
