A range of general purpose laboratory manometers using liquid displace­ment to measure differential pressure.

Description

A range of general purpose laboratory manometers using liquid displace­ment to measure differential pressure.

A range of manometers measuring differential water pressures up to ap­proximately 12.6m H2O. Scales are graduated in 1mm divisions.

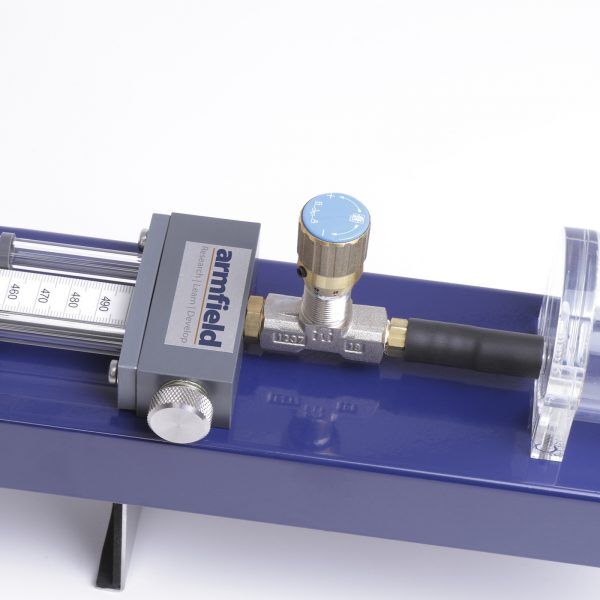

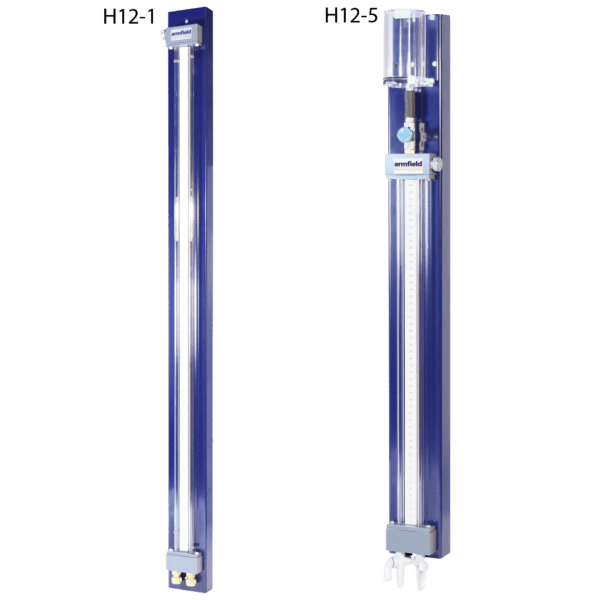

H12-1: 1 metre scale differential open water manometer

H12-2: 1 metre scale differential pressurised water manometer (the air space above the tubes can be pressurised with the pump sup­plied)

H12-3: 1 metre scale differential water over Mercury manometer – Range 12.6m H2O

H12-4: 500mm scale differential water over Mercury manometer – Range 6.3m H2O

H12-5: 500mm scale differential kerosene over water manometer – Range 0.213m H2O

Technical Specifications

Features & Benefits

Downloads

You need to be registered to download this. Click here to continue.

  • Low cost and easy to use instruments
  • Wide range of pressures accommodated using different manometer fluids

H12-6: Fee-standing column with height adjustment to take two manometers.

H12-7: Self-sealing and self-bleeding pressure tapping system which allows a pair of pressurised water or mercury manometers to be connected into and disconnected from a number of points around a pumped system.

The equipment consists of ten self-sealing pressure tapping points with 1/4” BSP male threads for fitting into the system and four self-bleeding pressure tapping lines for connection to two differential manometers. Tapping line bleeding is obtained with four in-line vented shut-off valves conveniently mounted on a fixing bracket. The system is supplied com­plete with a quantity of translucent plastic tubing.

See description.

NOTE: Due to its hazardous nature and severe shipping restrictions, Mercury is not included in Armfield’s scope of supply.

PACKED AND CRATED SHIPPING SPECIFICATIONS

H12-1 / H12-7

Volume: 0.01m³

Gross Weight: 21.5Kg

See description

  • H12-1
  • H12-2
  • H12-3
  • H12-4
  • H12-5
