FT5 Ribbon and Cone Blender


FT5 Ribbon and Cone Blender

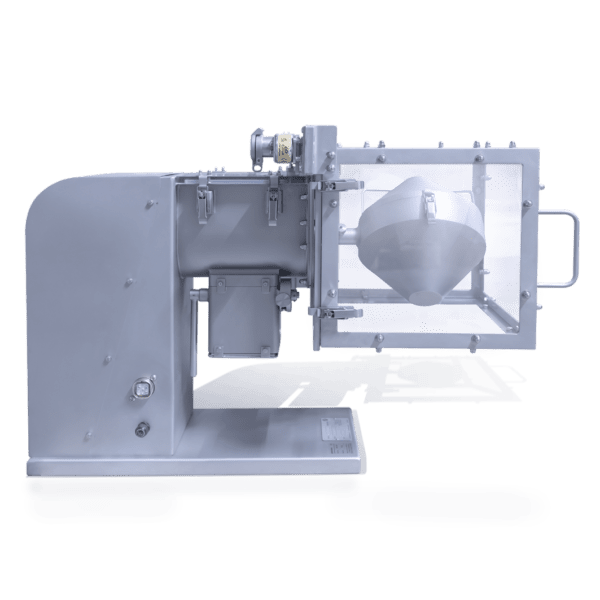

The Armfield Ribbon and Cone Blender is designed to provide gentle, efficient, and repeatable batch mixing of products by way of the slow rotation of an agitator.

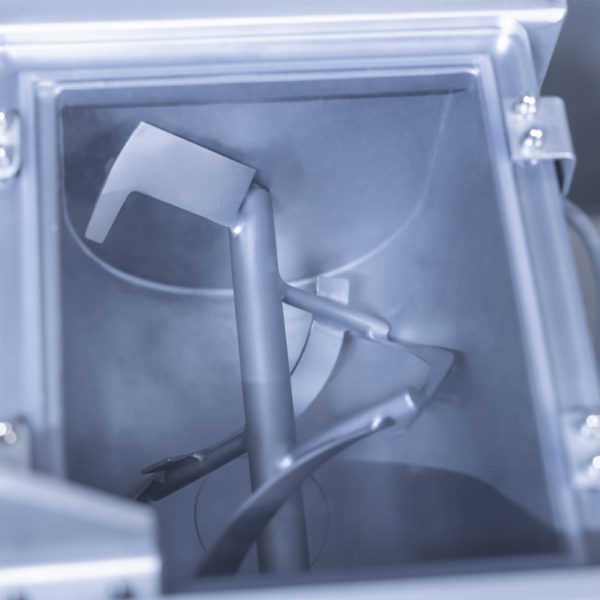

The equipment comprises a 3.2-litre stainless steel batch mixing vessel equipped with an electrically driven double helical ribbon agitator.

The speed of the ribbon blender may be varied and measured in order to study the effect of speed on the mixing process.

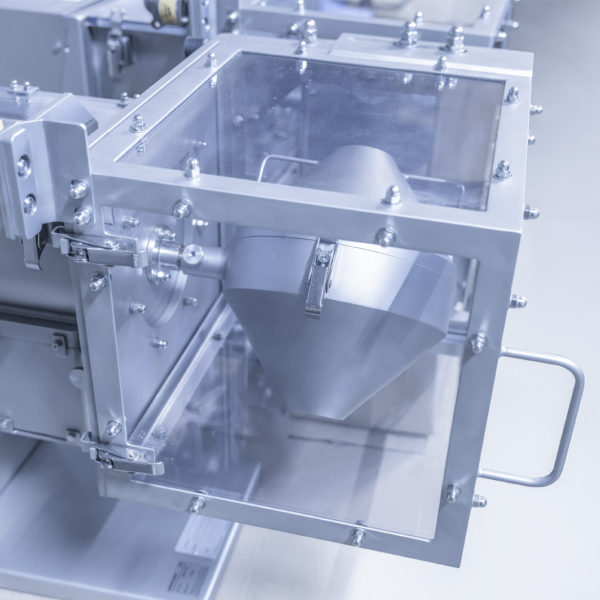

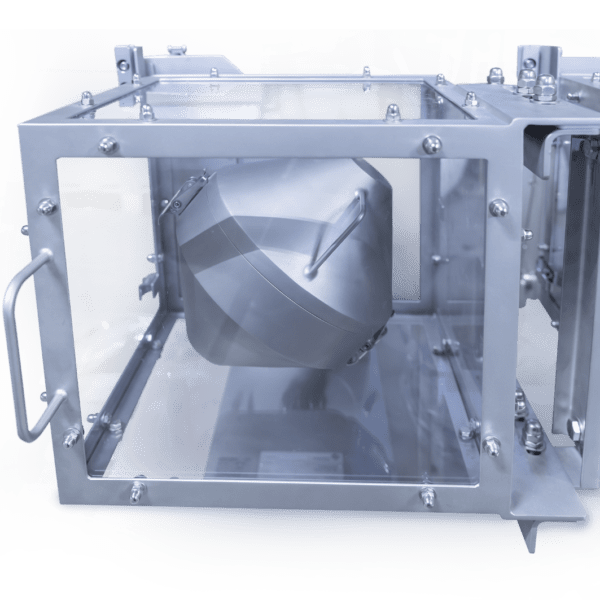

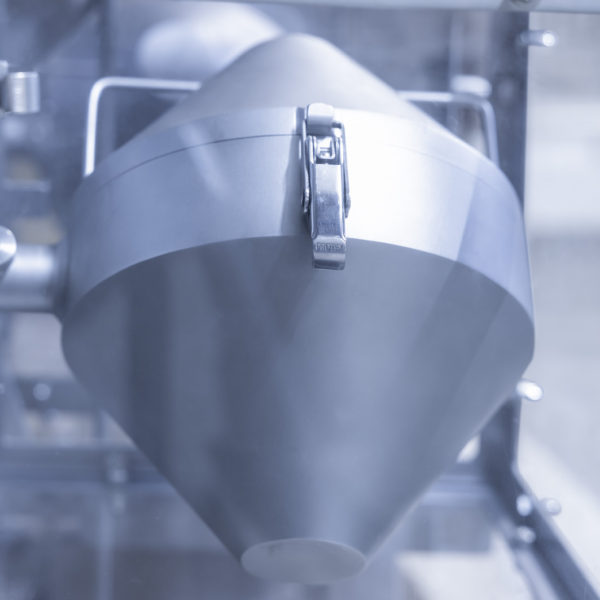

At the opposite end of the drive shaft to the motor, a double-cone mixer may be mounted in order to study the operation of an alternative type of mixing unit.

The equipment is bench mounted.

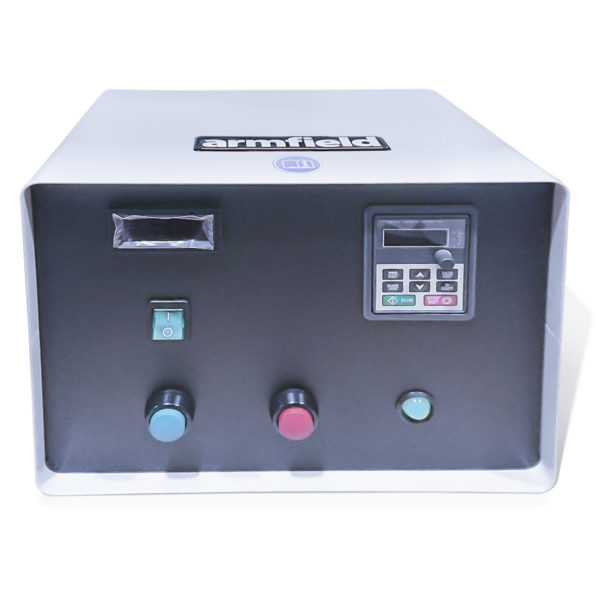

An Operating Console is included displaying current drawn by the motor, motor start/stop and motor speed control.

Additional information

Weight 150 kg
Dimensions .6 × .25 × .3 m

Technical Specifications

Max Batch Size: 3.2L
Material of Construction: Stainless Steel 316L
Discharge Control: Lever plug
Interior Finish: 180 grit
Geared Motor Unit: 150W Shaft Mounted
Motor Output Speed: 10 to 250 rpm
Agitator Shaft: Double Helix

Features & Benefits

  • Manufactured in AISI 316L for hygienic mixing
  • External console for ease of operation
  • Safety castell interlock, protects operators
  • Horizontal double helix agitator provides gentle mixing
  • Motor speed control from 10 – 250 RPM for optimum mixing control
  • Equipment dimensions allow for accurate scale up
  • Bench top unit


  • Pharma
  • Food
  • Agriculture
  • Cosmetic
  • Spices
  • Chemical

Electricity supply:

FT5-A: 220-240V / 1ph / 50Hz

FT5-B: 120V / 1ph / 60Hz

FT5-G: 220-240V / 1ph / 60Hz

Packed and crated shipping specifications

Volume: 0.4m3
Weight: 150kg

Length: 0.60m
Width:   0.25m
Height:  0.30m
