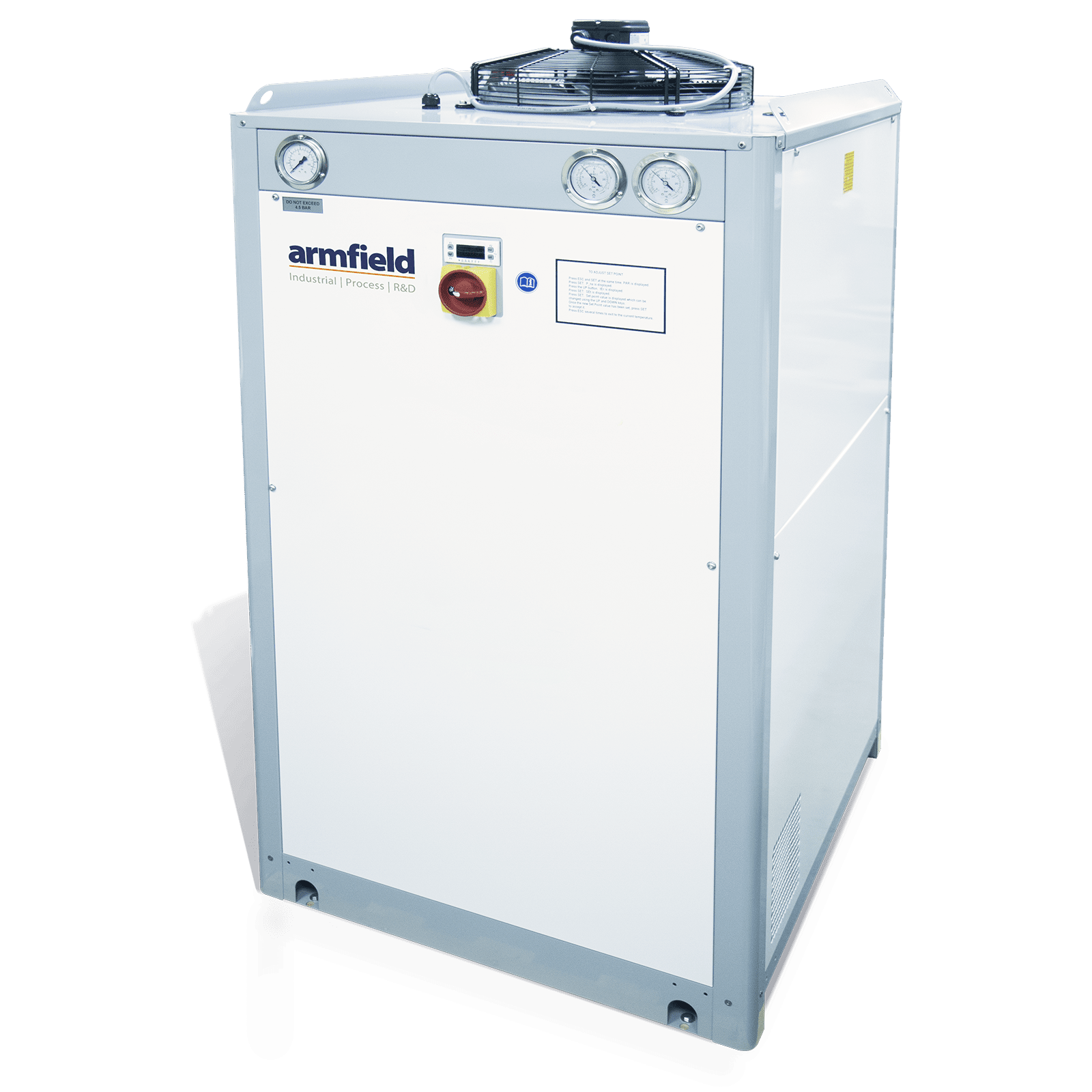

FT64 Laboratory Process Chiller



FT64 Laboratory Process Chiller

A recirculating process chiller suitable for both pilot plants and laboratories.
This unit has a small footprint giving high capacity to cater for all the ice/chilled water requirements in your laboratory.
Food grade primary and secondary refrigerants compatible with modern and future food and beverage research centres are used.

Description

A recirculating process chiller suitable for both pilot plants and laboratories.
This unit has a small footprint giving high capacity to cater for all the ice/chilled water requirements in your laboratory.
Food grade primary and secondary refrigerants compatible with modern and future food and beverage research centres are used.

Technical Specifications

  • The cooling capacity of a chiller is dependent on its operating conditions, particularly the liquid temperature and concentration.
  • The FT64 has a typical cooling capacity of 10.8kW with an outlet temperature of 0°C, using a 20% glycol solution (typical FT94X application). For other applications please consult Armfield.



Refrigerant:               R407C Freon
Max ambient temp:   32°C

Process pump

Head:        6 bar max
Flow rate: 4.8 m³/hr at 3.7 bar
Ingress protection rating: 54

Features & Benefits

  • Rapid cooling of products even at higher flow rates

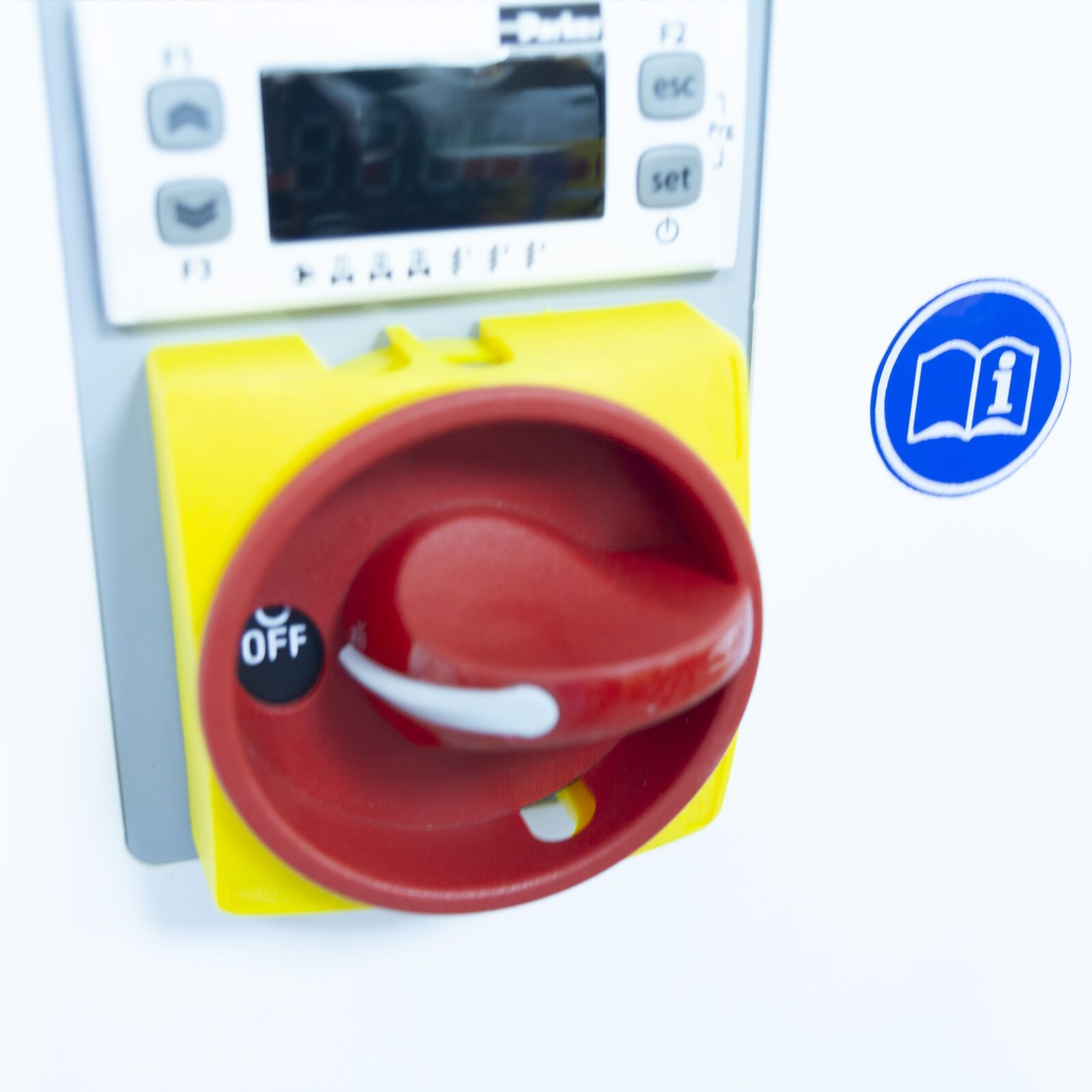

  • Very simple control panel with ergonomic operator interface
  • High accuracy temperature control
  • Continuous recirculation ensures reduced response times when changing the set point

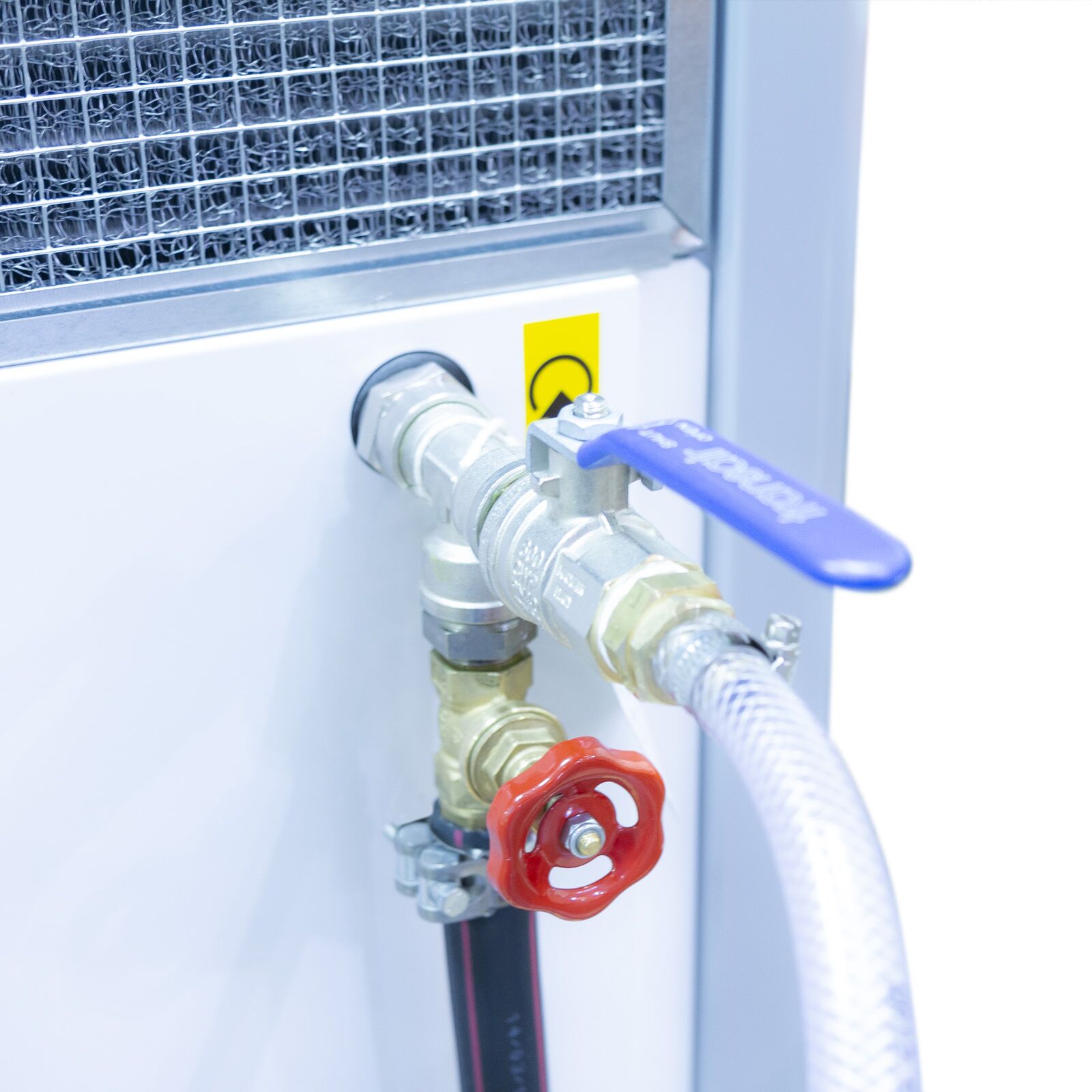

  • Three distribution circuits mean one can be isolated leaving the other two running at the desired capacity without interruption
  • High accuracy in control of temperature due to reservoir of
  • precooled media
  • Small footprint
  • Three distribution circuits
  • Wide process range and ambient operability range
  • High efficiency cooling circuit

Downloads

  • Three isolatable distribution circuits
  • 10.8 kW cooling duty
  • Floor standing

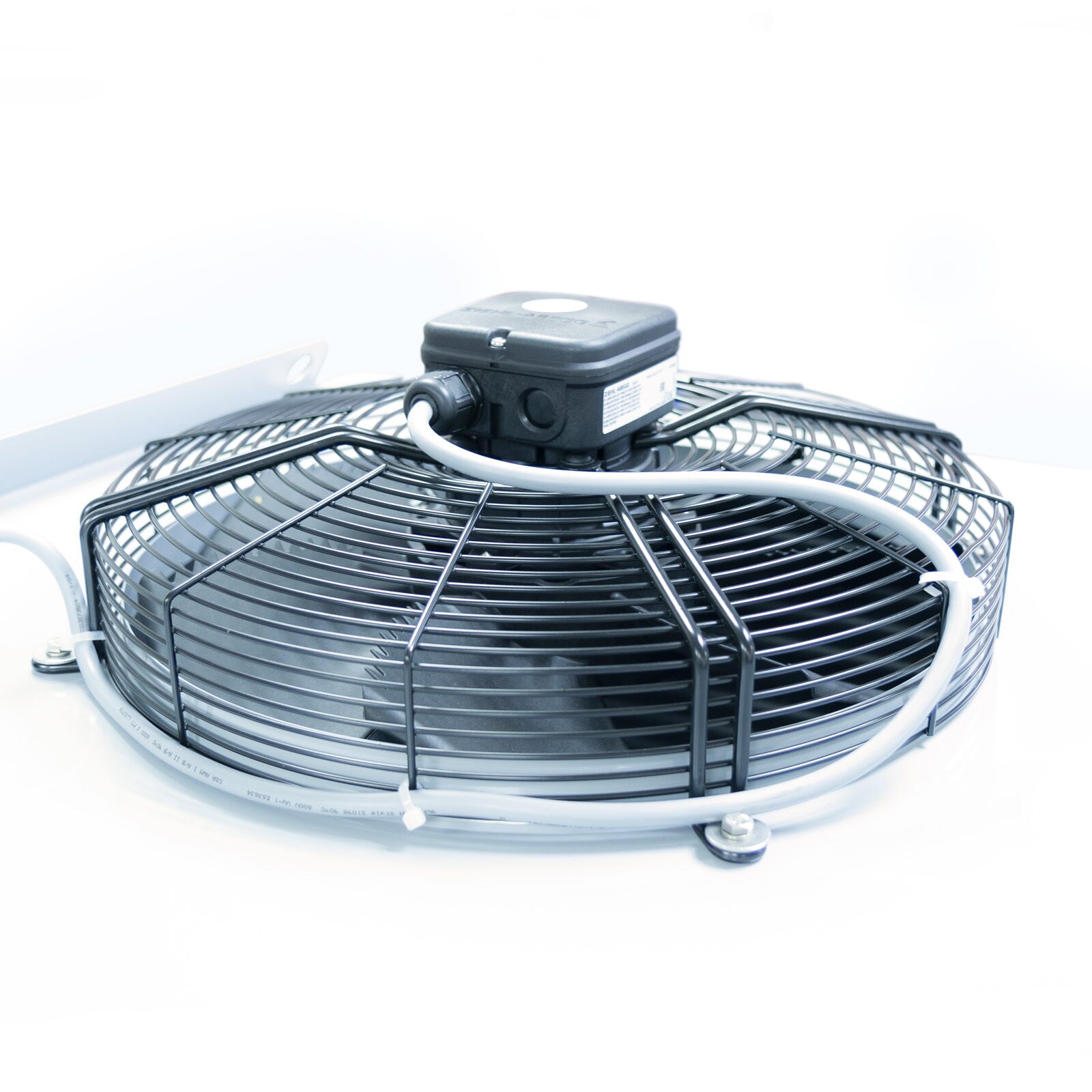

  • Single Axial Fan
  • Noise rating 53dB

  • Electricity supply: 3 Phase 400 Volts / 50Hz (other options available) Contact – sales@armfield.co.uk for more information
  • Water or glycol (for initial commissioning, deionised)

Packed and crated shipping specifications

Volume:           2.15m3
Gross weight: 310Kg

Length: 0.756m
Width:   1.405m
Height : 0.806m

FT64-E
FT64-F
