FM40 – Centrifugal Fan Demonstration Unit



FM40 – Centrifugal Fan Demonstration Unit

The Armfield centrifugal fan is a radial flow machine which produces the necessary pressure to move gas by the centrifugal force built up inside the fan casing. The design of the fan blade has a primary influence on performance.

These types of fans are usually employed for ventilating duties requiring a somewhat higher delivery pressure than that available from axial fans.

Description

The Armfield centrifugal fan is a radial flow machine which produces the necessary pressure to move gas by the centrifugal force built up inside the fan casing. The design of the fan blade has a primary influence on performance.

These types of fans are usually employed for ventilating duties requiring a somewhat higher delivery pressure than that available from axial fans.

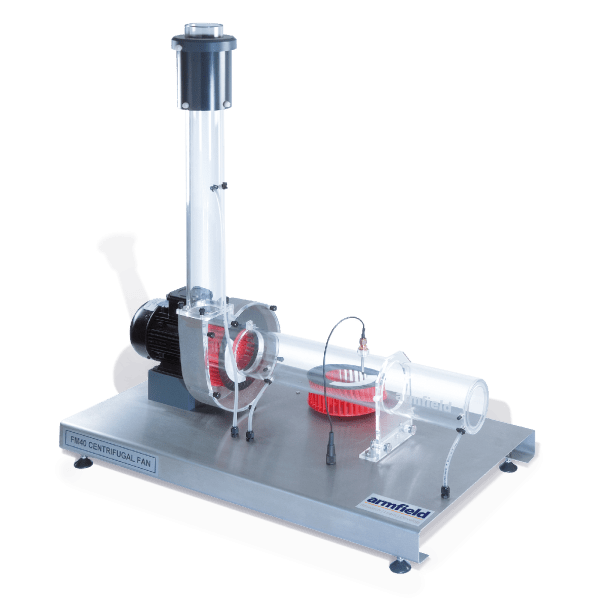

A motor driven centrifugal fan mounted on a stainless steel plinth. Transparent air inlet and air outlet ducts enable the fan volute and the impellor to be clearly observed. A manually operated adjustable aperture allows the air flow rate to be varied at constant fan speed. A calibrated orifice plate is used on the discharge to measure the air flow rate.

Interchangeable backward and forward-curved blade impellers are provided to facilitate direct comparison between their respective operating characteristics and to demonstrate to which duties each is best suited.

Electronic sensors measure the pressure head developed across the fan, the pressure across the orifice plate (and hence the flow rate) and the air temperature.



Technical Specifications

Features & Benefits

Downloads

Measurement of constant-speed machine performance in terms of static and total pressures, rotor speed and motor shaft power as a function of inlet flow

  • Measurement of fan efficiency and estimation of impeller power efficiency
  • Measurement of performance at constant speeds
  • Introduction to similarity laws for scale-up
  • Comparison of student calculations with computer results

The ArmSOFT software enables the operator to control the fan speed 0 to 100%. Feedback from the sensors is then displayed in real time for the end user with simultaneous data logging.

The data trend is also displayed graphically in real time and can be exported to another platform such as Excel for further analysis.

amrfield-fm40-software-screen

Electrical Supply

  • IFD7-A: 220-240V / 1Ph / 50Hz
  • IFD7-G: 220-240V / 1Ph / 60Hz

Armfield IFD7

Software requires a computer running Windows XP or above with a USB port (computer not supplied by Armfield)

PACKED AND CRATED SHIPPING SPECIFICATIONS

 Volume: 0.75m³

Gross Weight: 90Kg

Length: 0.88m

Width: 0.51m

Height: 0.97m

FM40

IFD7-A: 220-240V / 1Ph / 50Hz

IFD7-G: 220-240V / 1Ph / 60Hz
